ForceTrain® Tower Specifications

The ForceTrain® Tower is engineered to deliver isokinetic & isometric resistance for functional strength training and rehabilitation. Designed with durability and versatility in mind, it seamlessly integrates into performance facilities, clinics, and tactical environments.

Performance Specifications

  • Versatility: Supports 30+ functional movement patterns
  • Velocity Range: 0.0 – 1.3 m/s
  • Force Threshold: Up to 1500 lbs. of constant isokinetic or isometric resistance
  • Power Requirement: Standard 110V outlet (no special wiring needed)

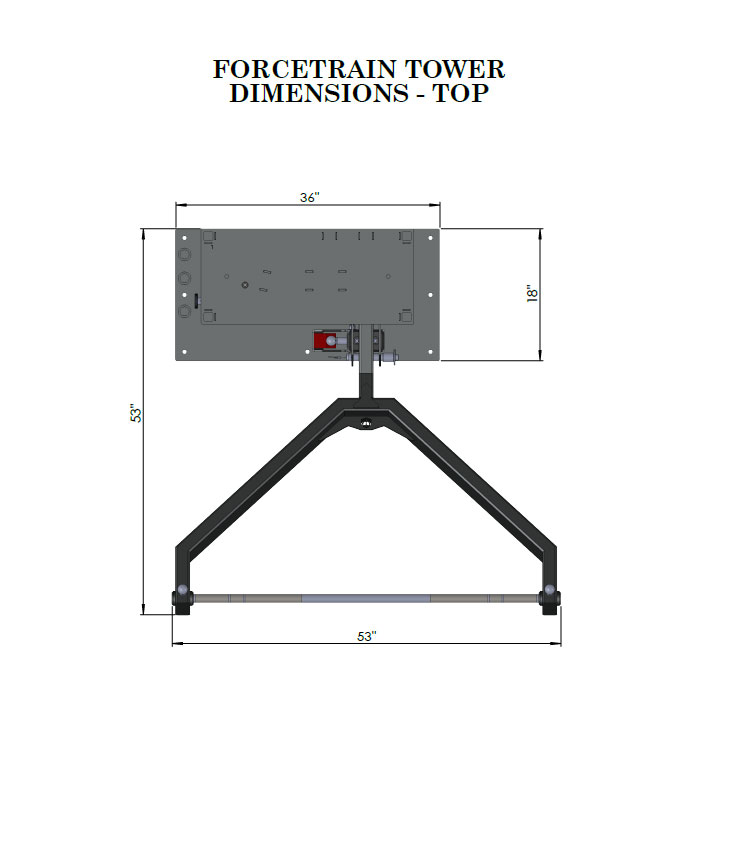

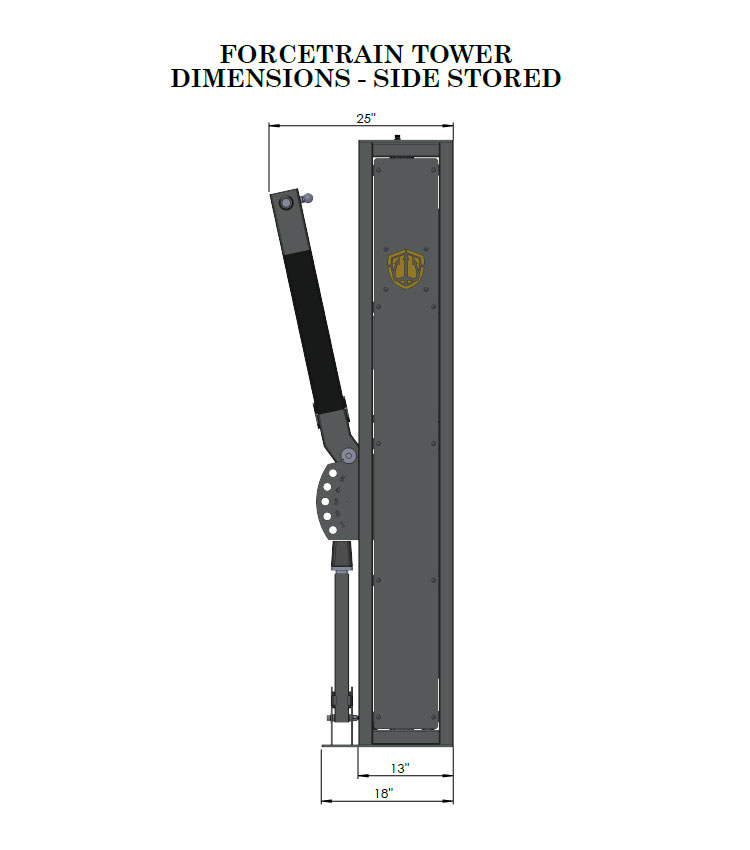

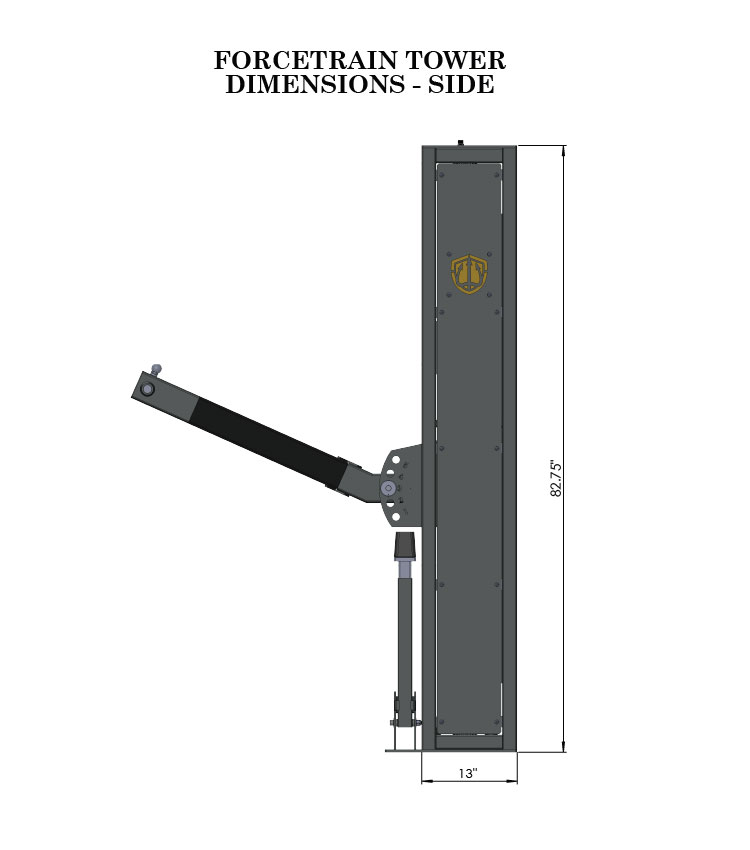

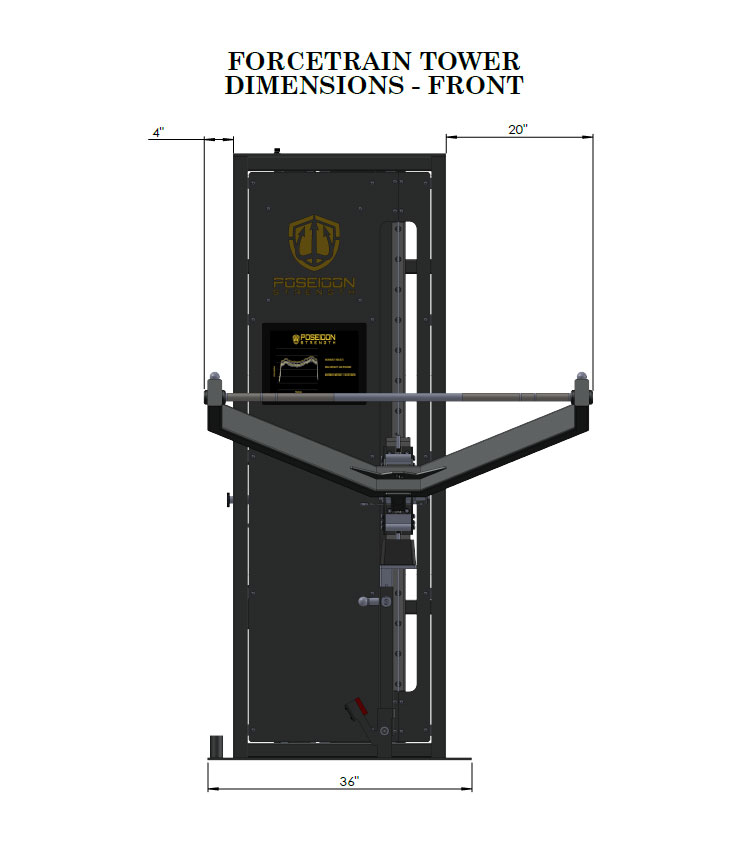

Dimensions

  • Width: 36″

  • Height: 82.75″

  • Depth: 13″ stored, 25″ extended
  • Footprint: 53″ x 36″

Construction & Design

  • Material: Industrial-grade steel and reinforced hydraulic components
  • Finish: Durable powder coat for long-term use
  • Display: Integrated onboard display for real-time force, velocity, and range metrics
  • Safety: Automatic force attenuation with zero stored energy to ensure user safety during maximal effort output

Installation & Integration

The ForceTrain® Tower is shipped fully assembled and ready to install with minimal footprint requirements. Mounting and placement guides are provided for optimal safety and usability within your facility.

Why Choose ForceTrain® Tower?

Whether your goal is to enhance strength assessment, accelerate rehabilitation, or integrate velocity-based training with true isokinetic resistance, the ForceTrain® Tower delivers reliable, actionable data while keeping users safe under maximal loads.
